ReBall Fixture

BGA Reballing has never been easier!

thumb-1

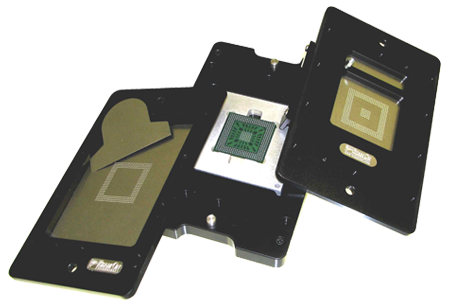

Our ReBall System is elegant in design and a snap to use. Invented to save you both time and money, It's no wonder that it's the most popular reballing system in use! The anodized frames and hardware are fully reusable. For diffenent parts we provide modular foil sets and drop in aluminum nest.

Key Components

Invented to save you both time AND money, it's no wonder the most popular reballing system in use!

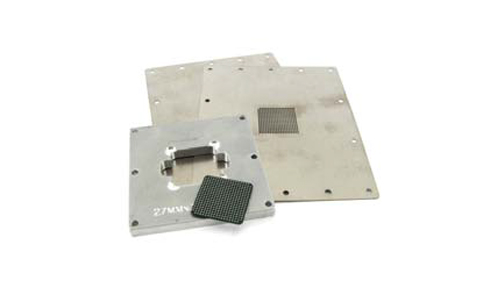

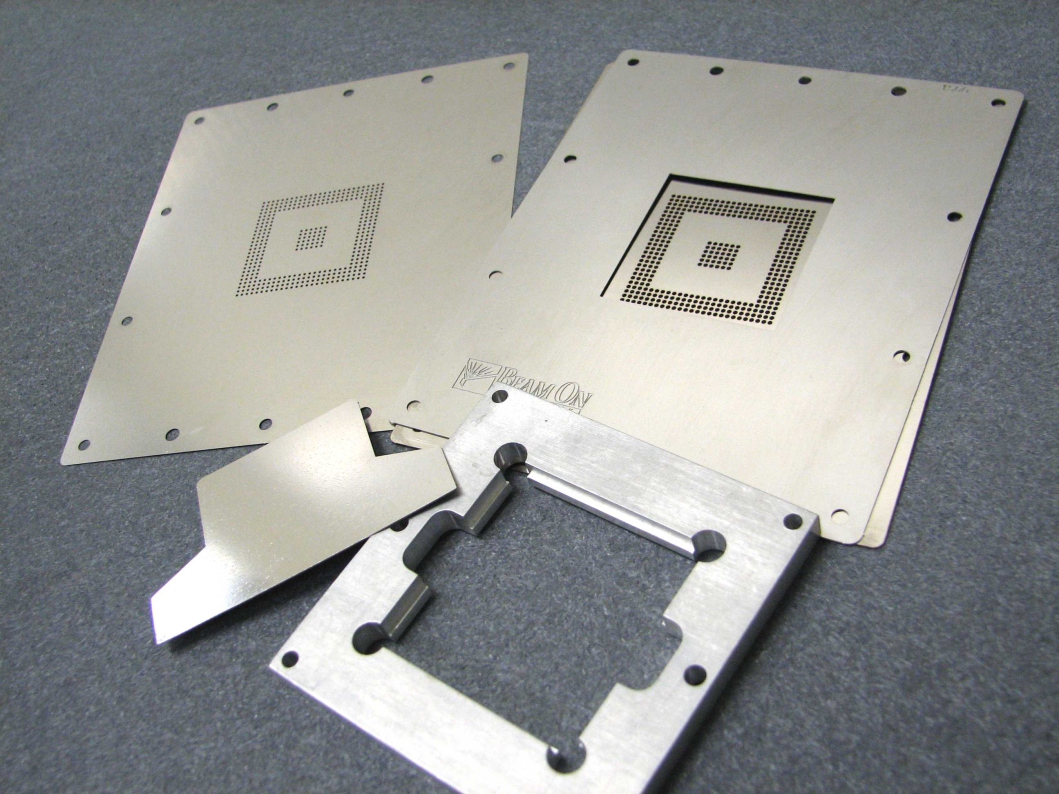

The anodized frames and hardware are fully reusable. For different parts we provide modular foil sets and drop in aluminum nest.

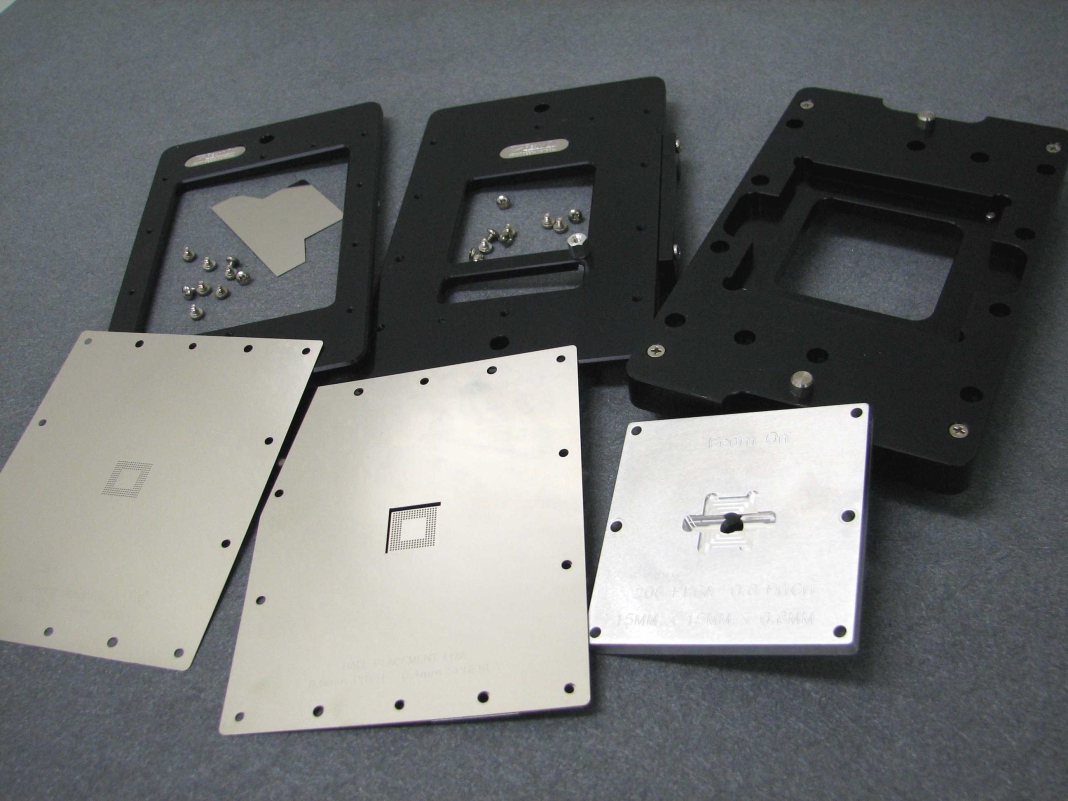

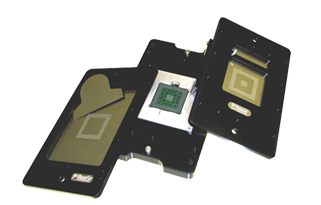

thumb-1Complete set including Base and Black frames
thumb-1Replacement Set


Data Requirements

  • Component data-sheet including part dimension, ball pitch, ball count, component thickness.
  • Gerber data is required for complex array patterns and components having multiple pitches.
  • Please specify the sphere diameter you will be using or else we will follow the data-sheet specification.

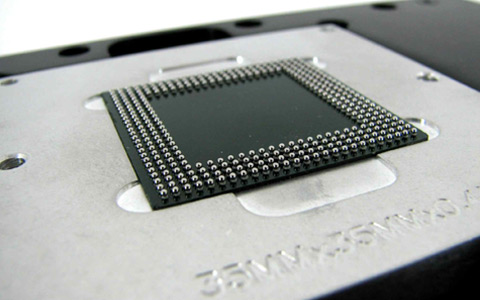

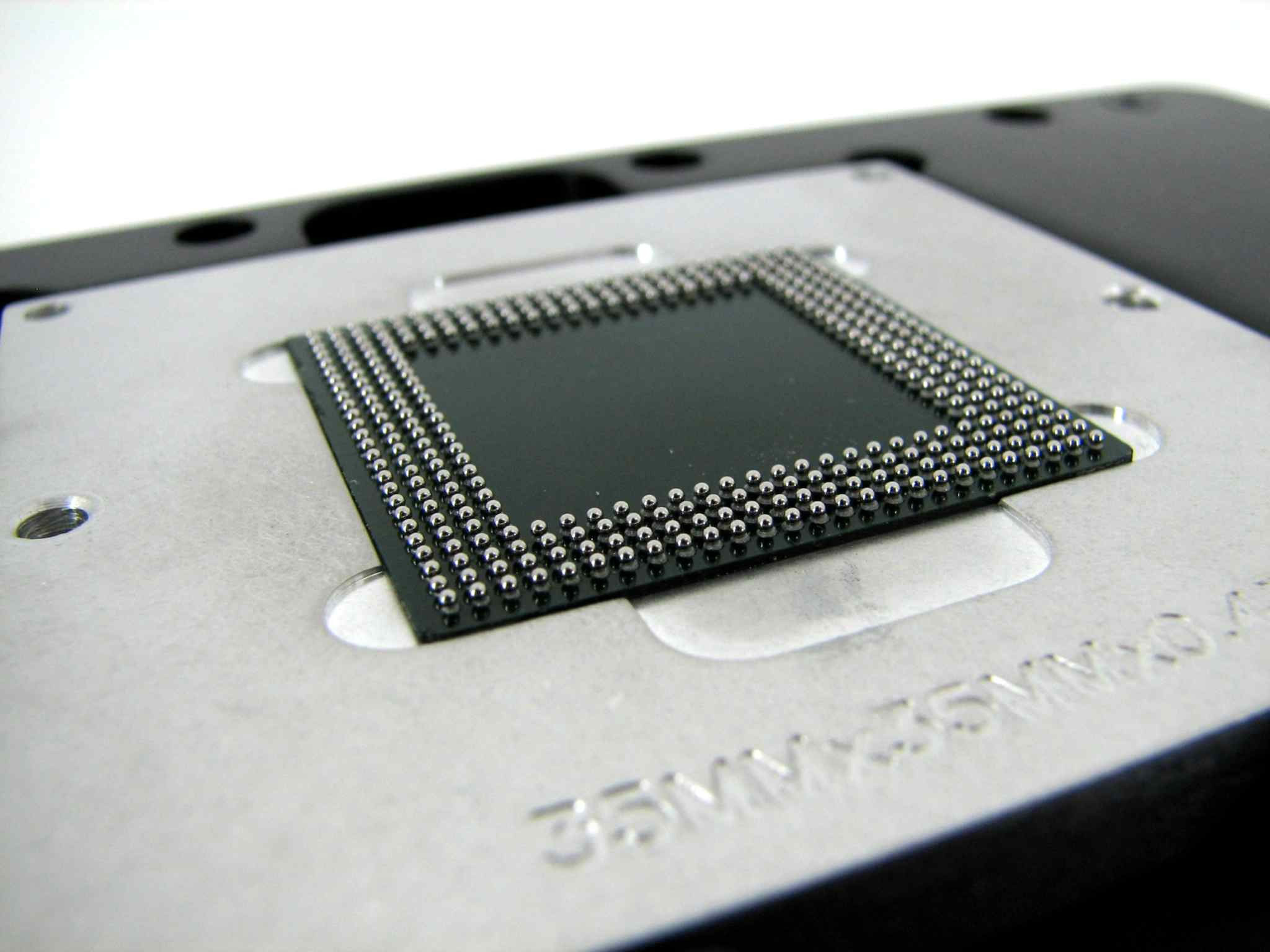

Part Ready for Reflow




Technical knowledge, Sensibly Applied
