Pressfit Fixtures

Accurate drilling and adequate support is crucial to avoid an irrepairable mistake.

thumb-1

Beam On pressfit fixtures are designed with redundancy checks to prevent:

  • Crushed parts located near connectors
  • Damaged connectors due to misaligned or missing drills
  • Delays due to missing edge connector overhangs

Our pressfit design focuses on ensuring clearances and adequate support due to the extreme pressure required to seat multi-pin connectors.

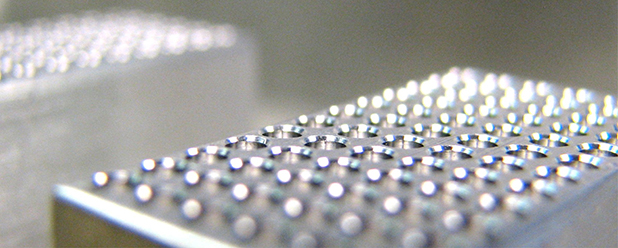

These fixtures come in both aluminum block style as well as solid base style. We also make pressfit fixtures to swage pemnuts and other hardware.
